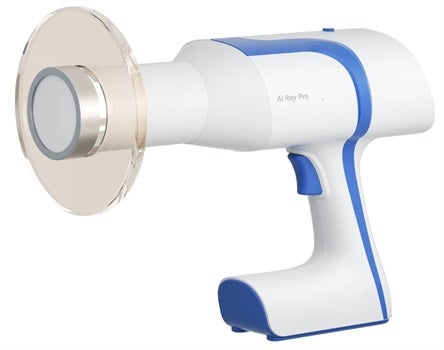

Woodpecker Ai Ray Portable DC Handheld
X-Ray Machine is a compact & lightweight device, that ensures the
safety of both dentist & patient by minimal radiation. It produces a
clear, higher-quality image with a better shooting effect through an
inbuilt Canon tube and a shorter exposure time. 70Kvp-3ma
Ai Ray Portable DC X-Ray Offers huge rechargeable battery enables easy & multiple shooting keeping everywhere.
This X-ray unit is compact in size and
its portable nature helps you to use it in a comfortable manner.
Moreover, this unit is highly ensured with safety standards owing to its
minimum exposure time.
Clinical Benefits :
High efficiency for sharp radiography gives high-quality images.
Non-invasive diagnostic imaging equipment taking care of the patient’s safety to radiation exposure.
All X-rays are compatible with IOPA Film and RVG leading to the convenience of operations.
WoodPecker AI Ray Primary Technical Parameters:
Power adapter input: 100-240V 50/60Hz 1.5A
Internal power supply: DC 10.8V
X-ray tube
a) X-ray tube model: D-045;
b) Focal spot: 0.4mm;
c) Target angle: 12.5°;
d) Total filtration: 1.5mmAl/70 kV-3ma
e) Additional filtration: 0.5mmAl/70 kV
Product specifications
Dimension: 114mm×363.8mm×245.6mm
Weight: 2.4KG -6lbs
Battery specification: 10.8V/2450~15000mAh
2-year Warranty
